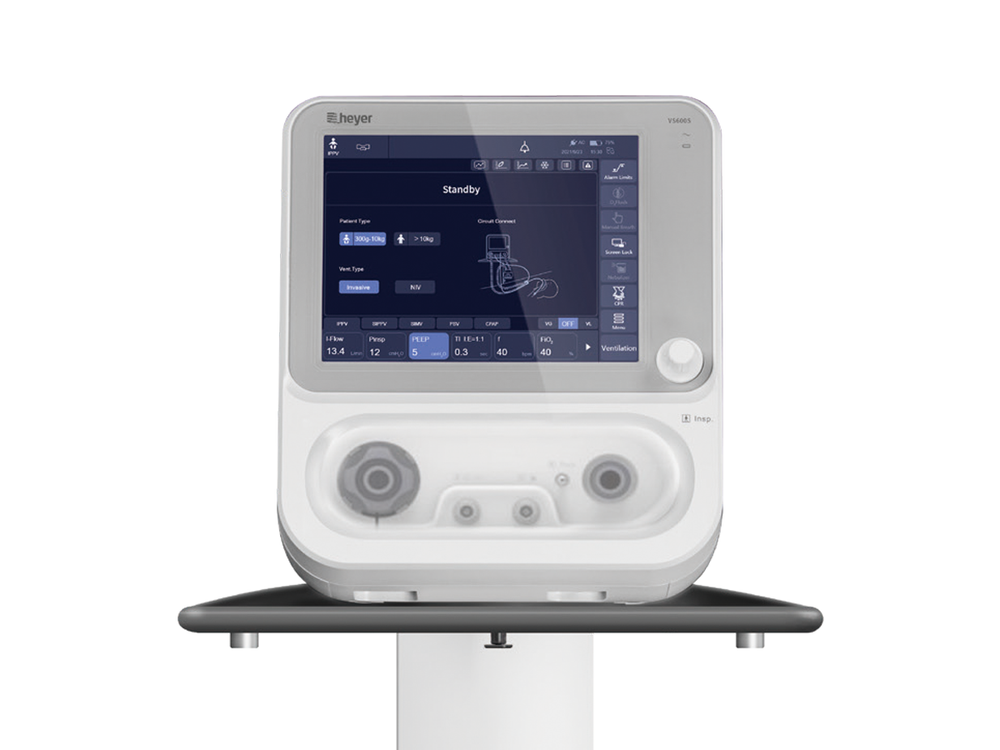

The VS600S is a ventilator developed specifically for premature infants, neonates and children. Designed for the delivery room, NICU and PICU, it combines invasive and non-invasive ventilation modes in a single device – with a 10.4″ touchscreen and comprehensive real-time monitoring.
Comprehensive ventilation modalities for premature infants, neonates and children – invasive and non-invasive in one device.
Volume guarantee (VG) and volume-limited ventilation (VL) from 2 ml tidal volume – to reduce the risk of volutrauma.
Measures flow directly at the patient – for greater precision and added safety during ventilation.
High-Flow Nasal Cannula reduces dead space and creates positive airway pressure to support spontaneous breathing.
Assisted ventilation for cardiopulmonary resuscitation – designed for emergency use.
An optional abdominal respiration sensor detects apnoea and starts back-up ventilation in good time.
Hardly any form of ventilation poses greater challenges than that required for the very youngest patients: immature lungs, tiny tidal volumes, and virtually no margin for error. The VS600S is designed precisely for this purpose – a ventilator for preterm and newborn infants right through to children, combining invasive and non-invasive modes in a single system.
The focus is on precise, gentle ventilation: precisely metered tidal volumes, direct flow measurement at the patient’s side, and operating modes that adapt to the sensitive lungs rather than placing a strain on them. In this way, the VS600S supports patients through the most critical moments – from the intensive care unit through to stabilisation – with the reliability that this role demands.
An optional SpO₂ module adds three waveforms and parameters such as SpO₂/FiO₂, PI and OSI for clinical decisions.
Pressure, flow and SpO₂ waveforms show patient–ventilator interaction breath by breath.
The Oxygen Saturation Index monitors hypoxaemic respiratory failure in newborns – non-invasively at the bedside.
Support the early assessment of lung injury (ALI/ARDS) and the evaluation of peripheral perfusion.
| Core data | |
|---|---|
| Patient groups | Premature infants, neonates, children (0.3–40 kg) |
| Areas of use | Delivery room, NICU, PICU |
| Tidal volume | 2–600 ml (VG/VL) |
| Ventilation modes | IPPV, SIPPV, SIMV, PSV, CPAP, NCPAP, NIPPV, SNIPPV, HFNC; VG and VL combinable; CPR |
| Max. working pressure | 80 cmH₂O |
| Trigger | Flow and pressure |
| Device | |
| Display | 10.4″ TFT, capacitive |
| Weight / dimensions | 12 kg (without trolley) · < 300 × 338 × 343 mm (W×D×H) |
| Power supply | 100–240 VAC, 50/60 Hz · internal battery 14.4 VDC 6600 mAh |
| Battery runtime | ≥ 4 h |
| FiO₂ | 21-100 % |
| Connectivity | Wi-Fi, Ethernet, USB |
| Monitoring (standard) | Pressure and flow waveforms |
| Applied standards | ISO 80601-2-12 (ventilation), -2-55 (gas monitor), -2-61 (pulse oximetry), IEC 60601-1 · protection class IP21 |
| Optional modules | |
| SpO₂ (Masimo SET) | SpO₂, PR, PI; derived SpO₂/FiO₂ and OSI; SpO₂ waveform |
| Abdominal respiration sensor | Apnoea detection and backup ventilation |
Premature infants, neonates and children – in the delivery room, NICU and PICU.
Invasive and non-invasive ventilation, VG and VL modes from 2 ml tidal volume, as well as HFNC and a CPR function.
With the optional SpO₂ module, three waveforms and the parameters SpO₂/FiO₂, PI and OSI are available – helpful for the early assessment of ALI and ARDS.
Yes, optionally: an abdominal respiration sensor detects apnoea and starts back-up ventilation in good time.
The VS600S has a 10.4″ capacitive touchscreen.
