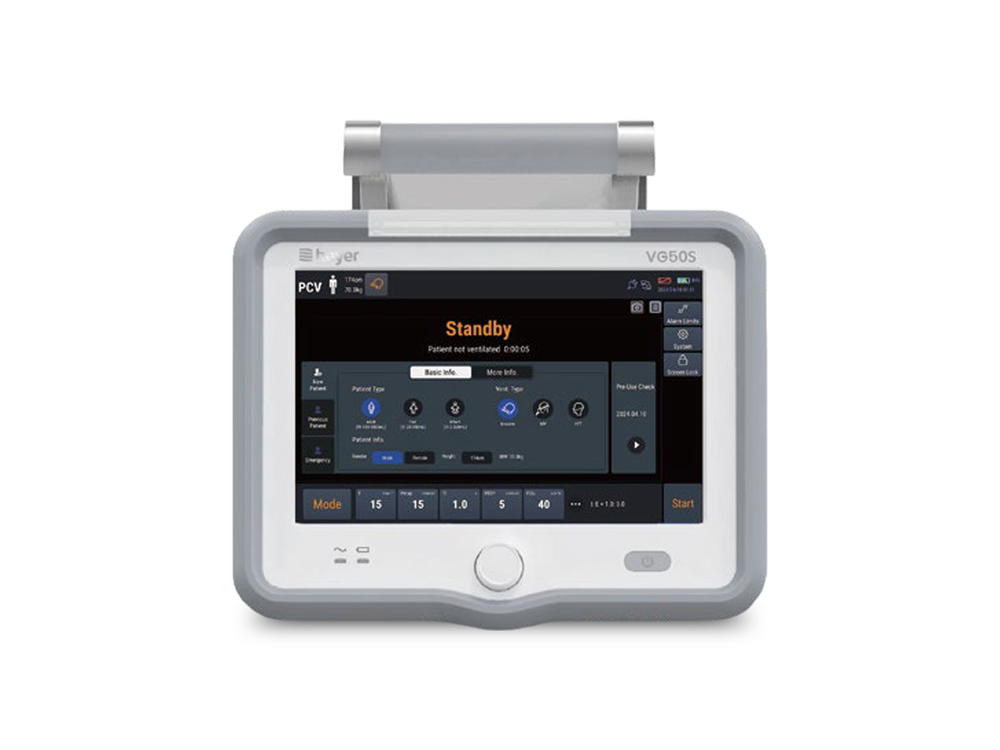

The VG50S is a turbine-driven all-in-one ventilator for adults, children, and infants. It is suitable for use across the board, from the intensive care unit to emergency and rescue settings, as well as for intra- and interhospital transport. One device instead of many individual systems.
From the ICU through emergency and rescue care to transport. One device instead of fragmented systems.
Electronic turbine technology with no external gas connection – ideal for emergencies without a gas supply.
Intelligent oxygen management cuts consumption by up to 40% and extends cylinder runtime.
Replaceable battery during operation; optionally available with a second battery for extended uptime.
Motion sensing and a sensor array dynamically compensate for vibration and shock during transport.
Target-controlled, adaptive ventilation automatically minimises airway pressure – a closed loop for transport.
Smart-ATV mode controls ventilation in a closed-loop system: Based on the target tidal volume, the system continuously and automatically adjusts PEEP, minute volume (%MinVol), and oxygen concentration (FiO₂)—ensuring that minute ventilation and oxygenation remain stable throughout the entire transport without the need for constant manual adjustments.
The system operates at the lowest possible airway pressure and adapts ventilation support in real time to the patient’s respiratory mechanics—from pre-hospital and in-hospital transport to emergency situations. This reduces the burden on the care team and provides reliability precisely where conditions are least predictable.
PCV, VCV, PRVC, CPRV, SIMV (VCV/PCV/PRVC), CPAP/PSV, BIVENT, APRV, VSV, MMV, ATV
PCV, S/T, S, T, CPAP, VGPS
High-flow oxygen therapy (HFT)
NIF, PEEPi, Elastic Resistance, Inspiratory Time Constant, P0.1, ΔP0.1CC, P–V tool and Lung Recruitment.
%fspont, RSBI, PEEP, FiO₂, Cstat, MVe, SpO₂, PR, VD/VT and automated SBT monitoring.
Optional Wi-Fi module for remote monitoring and teleconsultation.
| Patient groups | Adults, Pediatrics, Infants |
|---|---|
| Tidal Volume (Adults) | 100-3000 ml |
| Tidal Volume (Pediatrics) | 20-300 ml |
| Tidal Volume (Infants) | 2-300 ml |
| Weight | 6.5 kg (with handle; device without handle ≤ 6 kg) |
| Altitude compensation | up to 5000 m (adults/children), up to 4000 m (infants) |
| Protection rating | IP34 (dust- and splash-protected) |
| Drop test | 75 cm (1 corner, 3 edges, 6 faces), 30 G shock resistance |
| Operating temperature | −18 to 50 °C |
| Standards | EN 1789 (ambulances), GB/YY 9706 series |
The VG50S is an all-in-one ventilator for adults, children and neonates – used seamlessly from the ICU through emergency and rescue care to intra- and inter-hospital transport.
No. Thanks to electronic turbine technology, the VG50S is gas-source independent – ideal for emergency scenarios without a gas connection.
The VG50S is dust- and splash-protected to IP34, passes a 75 cm drop test and operates from −18 to 50 °C. OmniStab compensates for vibration and shock during transport.
