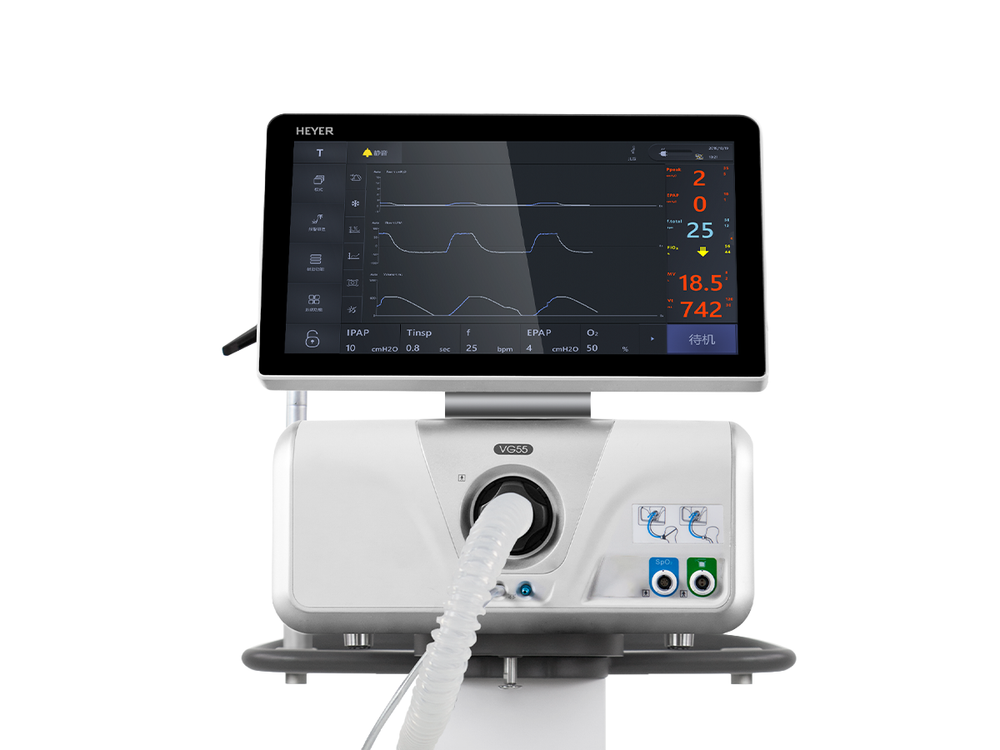

The VG55 is a turbine-driven ventilator for non-invasive ventilation (NIV). It is intended to support the breathing of patients with respiratory failure or chronic respiratory insufficiency who require mechanical ventilation – in hospitals and other healthcare facilities, under the direction of a physician and operated by trained professionals. In addition to its NIV modes, it offers high-flow oxygen therapy with 21–100% FiO₂ at up to 60 L/min and comprehensive monitoring functions.
Turbine-driven and designed for non-invasive ventilation (NIV) via mask.
High-flow oxygen therapy with a flow of up to 60 L/min.
Volume Guaranteed Pressure Support: a guaranteed tidal volume with automatically adjusted pressure.
Two levels of flow-based expiratory pressure relief for greater patient comfort.
Combined pressure and flow trigger for better patient–device synchrony.
Self-calibration in 15 seconds, operated via a 15.6″ touchscreen.
VGPS ensures a guaranteed tidal volume with automatically adjusted pressure, while CPAP with two-stage C-relief and the combined Smart Trigger ensure comfort and synchronization. In an emergency, the device delivers two minutes of pure oxygen at the push of a button, and up to 3,000 event and alarm logs provide a complete record of the course of treatment.

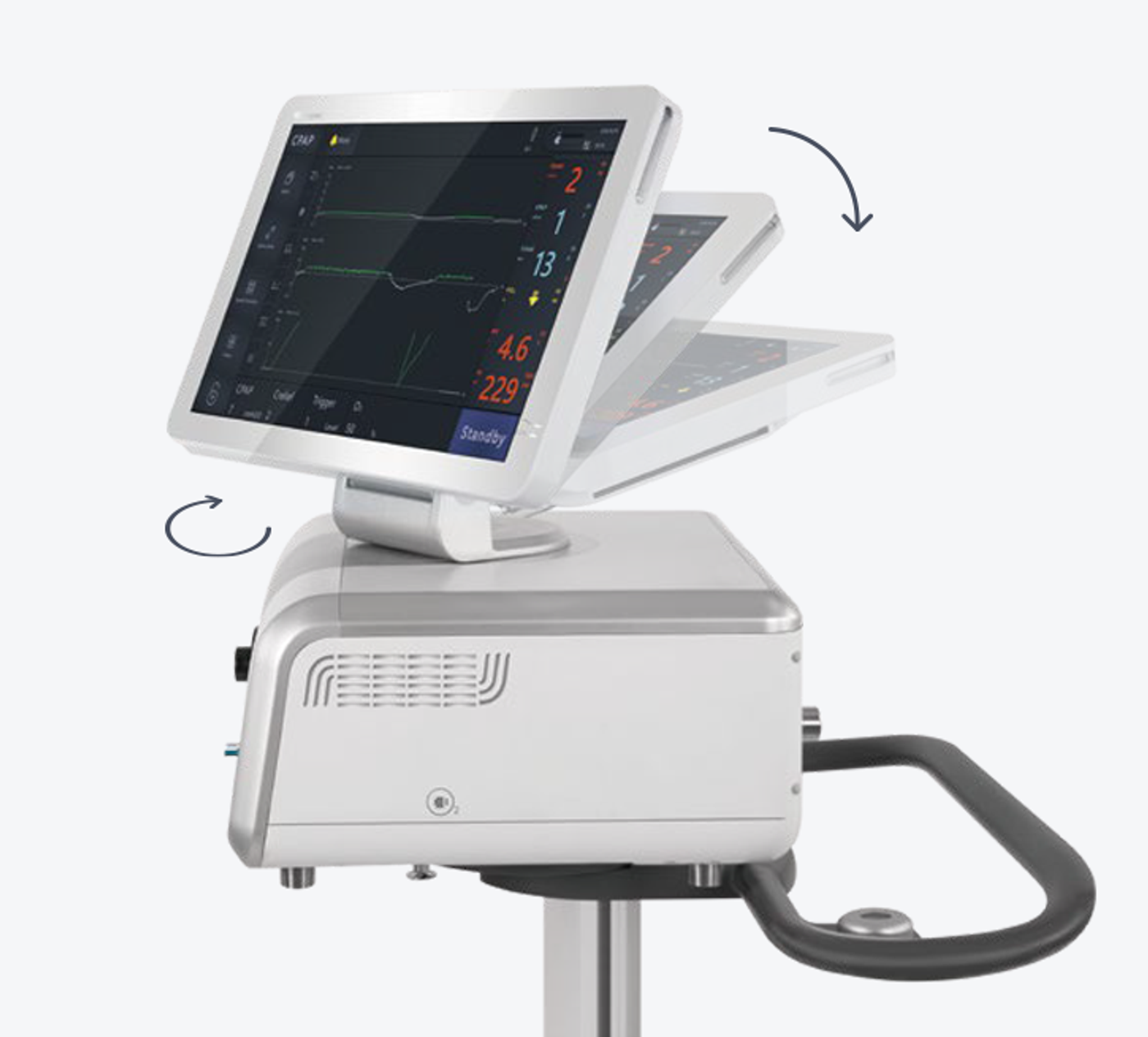

With 15.6” intelligent touchscreen, the VG55 displays complete ventilation monitoring in a single screen.
| Display | 15.6″, resolution 1920 × 1080 |
|---|---|
| Dimensions (main unit) | 370 × 160 × 340 mm |
| Weight, main unit (incl. battery) | 10.85 kg |
| Display weight | 3.3 kg |
| Complete system (incl. trolley/cylinder) | 48.85 kg |
| FiO₂ range | 21–100% |
| Flow (high-flow) | up to 60 L/min |
| Power supply | 100–240 V AC, 50/60 Hz, max. 300 VA |
| Battery | 14.4 V Li-ion, charging approx. 4 h, runtime ≥ 1.5 h (PEEP 15/Pinsp 25) or ≥ 2 h (PEEP 5/Pinsp 15) |
| Operating temperature | 5–40 °C |
| Operating altitude | up to 3000 m |
| Noise level | < 45 dB (1 m) |
| Storage | −20 to 55 °C, up to 5500 m |
The VG55 is intended for non-invasive ventilation (NIV). It supports the breathing of patients who require mechanical ventilation, at tidal volumes of 50 mL or more – in hospitals and other healthcare facilities, under the direction of a physician.
Via an air/oxygen blender, the VG55 delivers 21–100% FiO₂ at a flow of up to 60 L/min – from high-flow oxygen therapy to pressure-support ventilation.
Yes. The VG55 provides ICU-grade monitoring and logs up to 3,000 event and alarm records.
